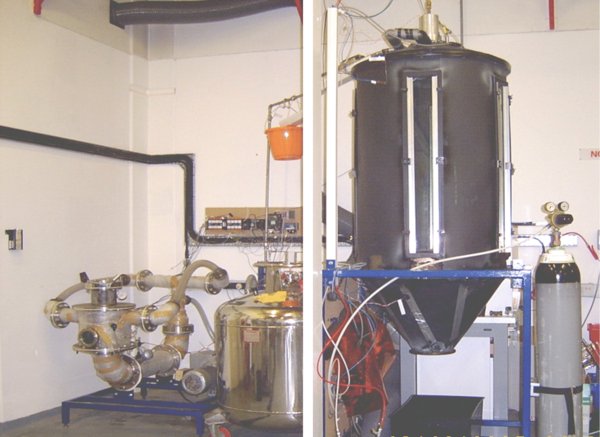

Figure 1.


The SFD apparatus used in these experiments. Spray-freezing initially occurs in the large (black) chamber located on the right of the photograph. The spray frozen particles are collected from the base of this chamber and transferred to the sub-atmospheric fluidized bed freeze-drying apparatus on the left of the photograph.
